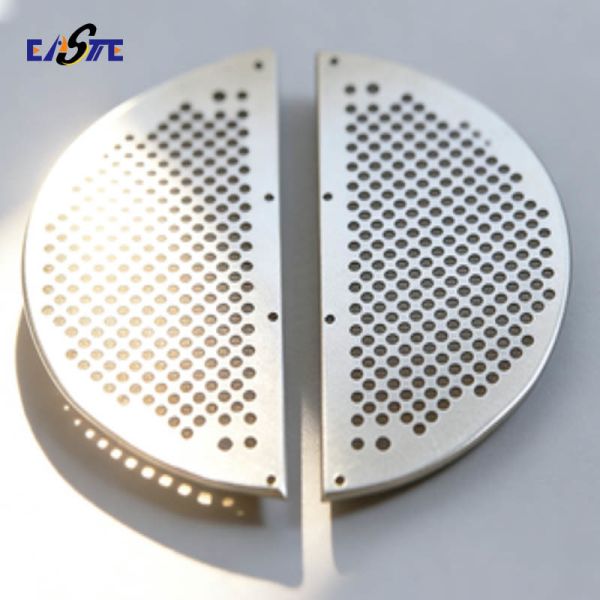

Chemical Etched Automotive Speaker Mesh & Custom Car Audio Grille & Micro-Porous Metal Meshes
Product Overview
Shenzhen Xinhaisen is a professional manufacturer specializing in the precision etching of metal components. Our Automotive Speaker Mesh is engineered for high-fidelity audio systems, providing the perfect balance between robust speaker protection and superior acoustic transparency. Utilizing advanced chemical etching technology, we produce speaker grilles with complex patterns and ultra-fine details that meet the stringent requirements of modern automotive design. Whether for aftermarket upgrades or high-volume OEM integration, our meshes deliver a sleek, durable, and high-performance solution for car audio systems.
Manufacturing Process
Our automotive speaker mesh is brought to life through a meticulous photo chemical machining or etching process that ensures precision without mechanical stress.
- Material Preparation & Cleaning
Raw metal coils such as Stainless Steel or Aluminum are cut to size and thoroughly cleaned to remove surface impurities.
- Laminating & Exposure
The cleaned metal is laminated with a light-sensitive photoresist film. A CAD-designed tool with the desired mesh pattern is placed over the material and exposed to UV light, hardening the resist in the pattern areas.
- Developing
The unexposed photoresist is washed away, leaving the metal exposed in the areas that will become the holes.
- Etching
The material is sprayed with an etchant that chemically dissolves the unprotected metal, forming precise mesh openings.
- Stripping & Cleaning
The hardened photoresist is stripped away, revealing the finished mesh.
- Inspection & Packaging
Each piece undergoes rigorous quality inspection for aperture accuracy, burr-free edges, and flatness before being protected with film and packaged.
- Product Features
- Burr-Free & Smooth Edges
Unlike mechanical punching, the chemical etching process creates completely burr-free and stress-free surfaces, ensuring safe handling and a clean aesthetic.
- High Precision & Complexity
Capable of producing micro-holes as small as 0.03mm and intricate geometric patterns that are impossible to achieve with traditional stamping, allowing for custom branding or acoustic tuning.
- Material Versatility
We can etch a wide variety of metals including Stainless Steel, Aluminum, Brass, Copper, and others to meet specific environmental and acoustic needs.
- Excellent Flatness
The process leaves the mesh perfectly flat with no warping or deformation, ensuring easy installation and a flawless fit.
- Consistent Uniformity
Achieves high consistency across large production runs, with precise control over hole size and pattern distribution.
Product Specifications
| Parameter |
Specification |
| Material |
Stainless Steel, Aluminum, Brass, Copper, and other metals |
| Thickness |
0.02mm to 1.5mm |
| Minimum Hole Size |
From 0.03mm for micro-perforated acoustic resistance |
| Minimum Line Width |
From 0.015mm |
| Tolerance |
±0.01mm |
Product Applications
- Car Audio Systems
Protective grilles for door speakers, dashboard tweeters, and rear deck subwoofers.
- Head Units & Navigation
Speaker covers for in-car entertainment systems.
- Microphone Grilles
Protective covers for hands-free calling microphones.
- Ventilation Grilles
Decorative and functional vents for interior trim components.
Our Advantages
- Precision at Scale
With expertise in etching thicknesses from 0.02mm to 1.5mm and achieving micro-holes down to 0.03mm, we handle both ultra-fine details and high-volume production with equal efficiency.
- Rapid Turnaround & Capacity
Our advanced production lines allow us to quickly respond to large-volume orders without compromising on speed or quality.
- Material Flexibility
We are proficient in etching a diverse range of metals, offering solutions for any design or environmental requirement.
- Cost-Effective for Complex Designs
The etching process is independent of pattern complexity. Intricate designs and custom logos are produced at the same cost as simple patterns.
- Proven Quality
We have earned a strong reputation across industries including automotive, medical, and telecommunications for delivering high-precision, burr-free parts.
FAQ
Q: What materials can be used for etched car speaker meshes?
A: We commonly use Stainless Steel for strength and corrosion resistance and Aluminum for lightweight and anodizing capabilities. Other materials like brass or copper are also available upon request.
Q: Can I customize the pattern or put a logo on the speaker mesh?
A: Yes, one of the primary advantages of chemical etching is design flexibility. We can replicate complex patterns, company logos, or custom acoustic hole arrangements without any additional tooling costs.
Q: How does etched mesh compare to punched mesh?
A: Etched mesh is burr-free and stress-free, meaning it will not warp or distort during production. It also allows for much finer and more complex patterns compared to stamped or punched mesh.
Q: What is the minimum order quantity for a custom design?
A: We specialize in flexibility. While we handle massive production runs, we also accommodate prototyping and smaller volume projects. Please contact us with your specifications for a detailed quote.
Q: How do you ensure the mesh does not rust in a car environment?
A: We offer various material grades to suit different environments. For example, Stainless Steel offers excellent corrosion resistance and is ideal for the varying temperatures and humidity levels inside vehicles.
Q: Does the mesh affect sound quality?
A: Our precision etching ensures the open area ratio and hole geometry are consistent, which is crucial for minimizing sound distortion and maintaining high-fidelity audio transmission.
Welcome to contact us at any time!
